The compass
(10-25 CANS/MIN)
Compact and Affordable
Combining the Technology of Two Leading Brands
The Compass combines the best technologies from two top manufacturers: Alpha Brewing Operations and Twin Monkeys Beverage Systems. Fully equipped to package all your craft beverages including beer, wine, coffee, kombucha, cider, RTD cocktails, and soda.

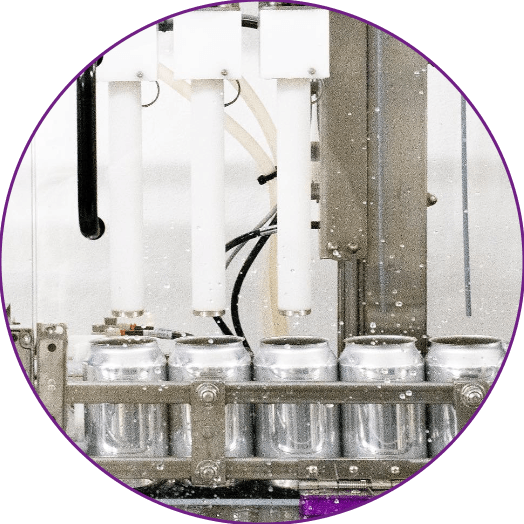

This 3 fill head canning line combines the best of each company’s portfolio: from filling and lid applications, to seaming and UI controls. Let’s work together to get your craft into cans.
- Compact Tabletop Footprint
- Intuitive Controls with Help Videos
- Five-Step Dissolved Oxygen Reduction
- Easily Change Can Sizes
- Patented Seaming Technology
- Sturdy, Mobile Welded Chassis
- CIP/SIP for fill system
Features & Specs
Features
- 10-25 cans per minute
- Available can-styles: Crowlers™, sleek, slim, and standard cans
- Tiny tabletop footprint
- Fully automated purge, fill, lid apply, seam
- Adjustable timers for all system functions
- CIP/SIP for fill system
- TPO pickup as low as 20 PPB
Equipped with
- Patented Seamer Technology
- Lid applicator with CO2 blanket generator
- Intuitive operator color touch screen with QR code support manual access
- Washdown systems for easy cleaning
- Pre-Rinse mechanism
5-Step Oxygen Reduction
- Closed fill tubes that do not re-acquire air between fill cycles
- Pre-fill purge station that clears air out prior to fills
- Short paths from fill to seam
- CO2 blanket generator when lids are placed on foam
- Dial-in foam/fill levels for individual fill head control
Utilities
| Power: | 120V or 230V 1-phase (50/60hz) | ||
| Controls Air: | 5.5 cfm of clean, dry air @ 90 PSI | ||
| CO2: | 1.0 CFM of CO2 @ 25 PSI |
Specs
- Throughput: 10-25 cans/minute
- Can Sizes: Slim, Sleek, Standard
- Dimensions: 48”L (1220mm) x 36”W (910mm) x 71”h (1800mm), 98″h (2490mm) with lid applicator
- Weight: 700 lbs (320 kg)
- Construction: 304 stainless steel and anodized aluminum
customize your setup
Like all of our canning lines, The Compass is fully customizable. Here are a few add-ons that can make this setup as powerful and as advanced as any nano canning machine you will find on the market.
Looking for something specific? Contact us directly to discuss your options.
Liquid Nitrogen Dosing
Fully integrated. Add a drop of LN2 to each can just before lid apply.
Depalletizer and twist rinse
Clean your cans without slowing your packaging run.
Can labelling and Date coding
Add the Advanced Tech Pack
- Automated Tank Pressure Controller to maintain beverage pressure for perfect fills
- Automated Fobber to add the perfect foam to each can for advanced oxygen reduction
- Post-Seam Rinse/Dry Module to clean the cans prior to packaging
- Automated Fill Raise to determine the precise time to withdraw the filler
- Lid Sensor: Lid sensor checks for a lid on a can before seaming. If no lid is detected it will not sea
